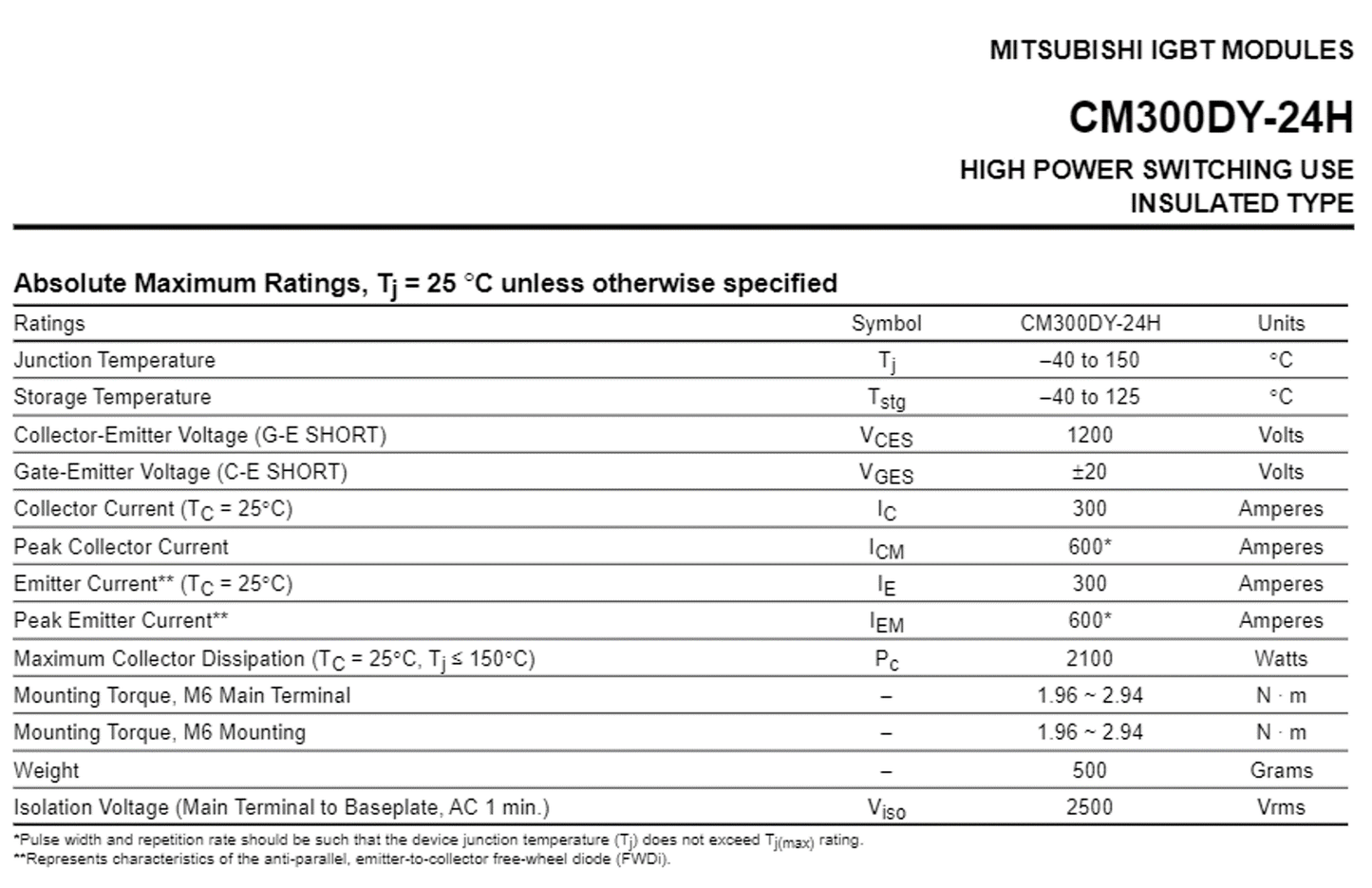

IGBT Mitsubishi, N-CHANNEL 1.2KV 300A PD2.1KW

IGBT Mitsubishi, N-CHANNEL 1.2KV 300A PD2.1KW

IGBT Module

Feature

MITSUBISHI IGBT MODULES CM300DY-24H HIG H POWER SWITCHING USE INSULATED TYPE A B M P - DIA. (4 TYP.) C2E1 E2 C1 E2 C2 R L D C F C1 E1 R G S - M6 THD .
(3 TYP) N K K G H TAB#110 t=0. 5 Q N K E J N E2

Description: Mitsubish i IGBT Modules are designed for use in switching applications.
Each module consists of two IGBTs in a half-bridge configuration with each transistor having a reverse-connected super-fast recovery free-wheel diode.
All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management.
Features: ٗ.

MIT:CM300DY-24H
